제품 세부 사항
원래 장소: 심천
브랜드 이름: HSCXLED
인증: KC CE ROHS FCC CCC ISO9001
모델 번호: P6.67
지불 및 배송 조건
최소 주문 수량: 1세트
포장 세부 사항: 목재 케이스/벌집 상자/싸움 케이스
배달 시간: 10-15workdays
지불 조건: L/C,T/T,D/A,D/P,웨스턴 유니온,MoneyGram
공급 능력: 1000SET/30DAY
제품명: |
야외 광고 LED 디스플레이 |
모델 번호: |
옥외-P6.67 |
애플리케이션: |
옥외, 광고 |
픽셀: |
6.67mm |
명도: |
10000나이트 |
재생률: |
3840-7680HZ |
캐비닛 크기: |
960*960mm |
재료: |
알루미늄 LED 디스플레이 |
AC 입력 전압: |
AC100--240V±10%/50~60Hz |
유지 보수 유형: |
전면 및 후면 유지 관리 |
예어: |
실외 광고 디스플레이 |
스크린 유형: |
프론트 서비스 LED 스크린 |
제품명: |
야외 광고 LED 디스플레이 |
모델 번호: |
옥외-P6.67 |
애플리케이션: |
옥외, 광고 |
픽셀: |
6.67mm |
명도: |
10000나이트 |
재생률: |
3840-7680HZ |
캐비닛 크기: |
960*960mm |
재료: |
알루미늄 LED 디스플레이 |
AC 입력 전압: |
AC100--240V±10%/50~60Hz |
유지 보수 유형: |
전면 및 후면 유지 관리 |
예어: |
실외 광고 디스플레이 |
스크린 유형: |
프론트 서비스 LED 스크린 |
High Brightness Energy Saving Outdoor All Weather Advertising LED Display Screen
Waterproof IP65 8K Outdoor High Brightness LED Billboard Panel for Street Advertising
Front Service P6.67 High Brightness aluminum LED display screen
| Model | P6.67 |
|---|---|
| Pixel pitch | 6.67mm |
| LED configuration | SMD2727 |
| Module size | 480*320mm |
| Scan mode | 1/6 scan |
| Pixel matrix per Module | 72*48dots |
| Pixel density(dots/sqm) | 22477 |
| Cabinet size | 960*960mm |
| Refresh rate | ≥3840HZ |
| Box material | profile aluminum |
| Brightness | 5500-10000nit |
| Ingress Protection | IP67 |
| Weight | ≤28kg/m² |
| Optimal Horizontal Viewing Angle | ≥ 160° |
| Optimal Vertical Viewing Angle | ≥ 140° |
| AC Input Voltage | AC 110V/220V±10%,50Hz/60Hz |
| Gray Level | 14bit |
| Working Temperature | -20 -50(℃) |
| Maximum power consumption | 600W/m² |
| average power consumption | 200W/m² |
| Operating Humidity | 10%~95% RH |
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats |
| Picture Format | Support JPG,PNG,and other image formats |
| Life Time | ≥ 100000(Hours) |
Advertising publish,retail store,shopping mall,display of dishes,welcome display,self-service business,exhibition hall,Restaurant & Hotel Supplies,education,medical treatment...

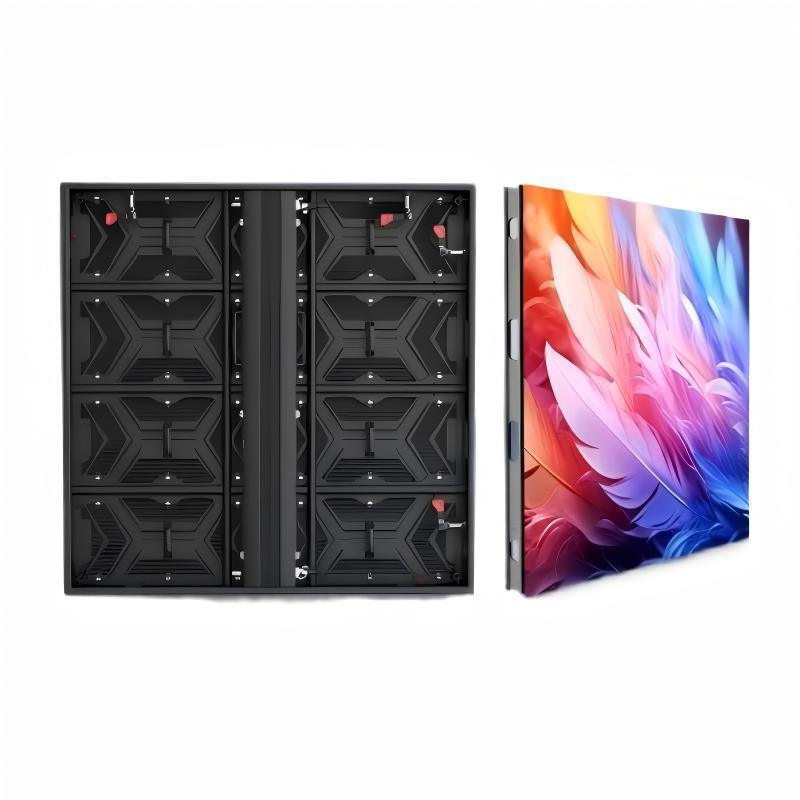

High-Brightness,Energy-Saving Aluminum LED Display
HSCXLED-Outdoor aluminum LED screen support multiple module model selections,Use standard universal 480*320mm size display module.Aluminum profile box, light and thin,The product has high brightness, high refresh rate,Modular design, low installation and maintenance costs, fast speed, supports front and rear maintenance and high protection level.
No need for a rear access channel,offering a sleek appearance and cost-effective structure.
Outdoor display screen has high requirements on protection level. HSCXLED-Outdoor aluminum LED screen front and rear protecting level is IP68/IP67. With the highest standard of waterproofing. All-day work, fully capable of any harsh environment, features with anti-corrosion, moisture-proof etc.
outdoor LED display screens , high temperature durability, fast heat dissipation with Noise-free, it is able to used at high temperature for a long time without deformation.
Our IP65 waterproof LED modules offer exceptional protection against extreme weather ensuring stable performance and longevity. The fanless power supply with waterproof seals further guarantees durability and reliable operation.
The screen display is smooth without lag,with a high refresh rate of up to3840-7680Hz.fast response speed,and no dragging,lagging,or flickering.The screen display is smooth and stable.High guality modules,Modular design for easy splicing true color high stability and long life.
For cloud control,Wi-Fi control,USB Disk,4G/5G,our smart control system are allowed to make it.
Outdoor LED Display/Outdoor aluminum LED screen
Outdoor advertising led display/Outdoor Waterproof Aluminum Profile LED Display
