Shenzhen H&S Innovation Technology Co., Ltd info@hscxled.com 86-134-2892-1577
제품 세부 사항
원래 장소: 심천, 중국
브랜드 이름: HSCXLED
인증: KC CE CE-LVD CE-EMC ROHS FCC CCC ISO9001
모델 번호: P0.9/P1.25/P1.56/P1.8
지불 및 배송 조건
최소 주문 수량: 1세트
포장 세부 사항: 목재 케이스/벌집 상자/싸움 케이스
배달 시간: 10-15workdays
지불 조건: L/C,T/T,D/A,D/P,웨스턴 유니온,MoneyGram
공급 능력: 1000SET/30DAY
모델 번호: |
P0.93-COB LED 디스플레이 |
애플리케이션: |
실내 |
픽셀: |
0.93mm |
용법: |
실내 광고 디스플레이 |
모듈 차원: |
150x168.75mm |
캐비닛 치수: |
600x337.5mm |
캐비닛 재질: |
다이캐스팅 알루미늄 |
예어: |
Led 비디오 디스플레이 패널 |
재생률: |
3840-7680HZ |
색상 심도: |
16비트 |
전원공급장치: |
100-240V AC |
IP 등급: |
IP54 |
해결: |
7680×4320(8K), 3840×2160(4K), 1920×1080(1080P) |
모델 번호: |
P0.93-COB LED 디스플레이 |
애플리케이션: |
실내 |
픽셀: |
0.93mm |
용법: |
실내 광고 디스플레이 |
모듈 차원: |
150x168.75mm |
캐비닛 치수: |
600x337.5mm |
캐비닛 재질: |
다이캐스팅 알루미늄 |
예어: |
Led 비디오 디스플레이 패널 |
재생률: |
3840-7680HZ |
색상 심도: |
16비트 |
전원공급장치: |
100-240V AC |
IP 등급: |
IP54 |
해결: |
7680×4320(8K), 3840×2160(4K), 1920×1080(1080P) |

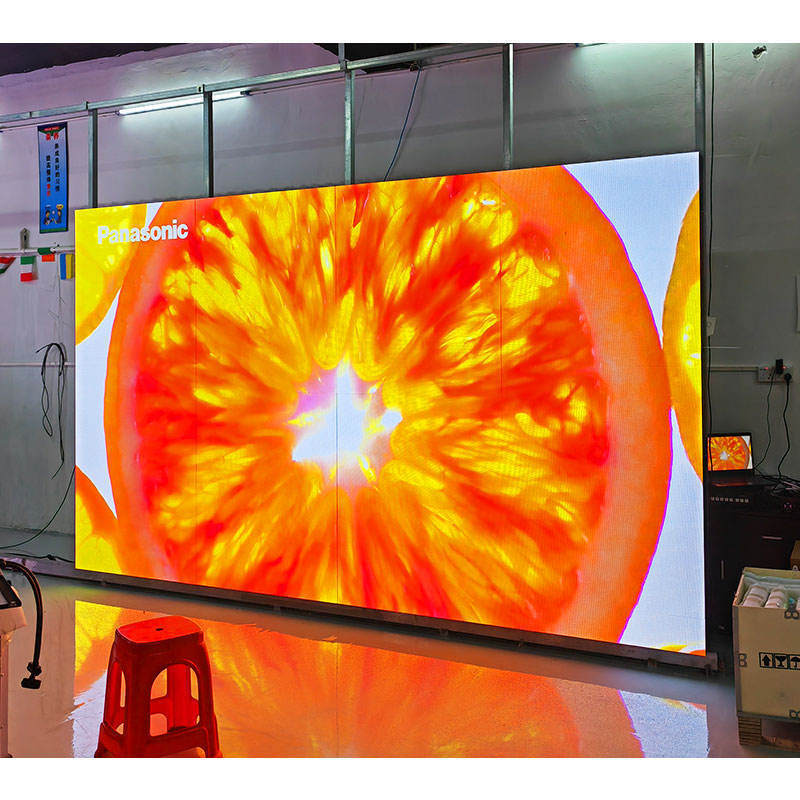

HSCXLED-COB ledscren is the world’s most immersive true 4K home theater LED display—engineered for luxury villas, premium apartments, and high-end media rooms. Featuring native 4K pixel-to-pixel rendering, 20,000:1 contrast, HDR10, and 4K@120Hz ultra-low latency, it delivers cinema-grade visuals without projectors or lamps. Built with COB flip-chip and common cathode technology, it’s cool, durable. Trusted by AV integrators and luxury developers globally, HSCXLED redefines what’s possible in home entertainment.
COB integrated packaging, strong reliability, easy to clean;
Chip level packaging enhances fan heating capability at the source;
Ultra thin and lightweight, with an overall thickness of only 27.5mm;
No seams, ultra-high definition, and natural color transitions;
Complete pre maintenance, supporting pre - and post installation, more flexible and convenient.
|
Model
|
COB0.9(Flip-Chip)
|
COB1.2(Flip-Chip)
|
COB1.5(Flip-Chip)
|
COB1.8(Flip-Chip)
|
|
Pixel Pitch(mm)
|
0.9375
|
1.25
|
1.56
|
1.875
|
|
Pixel Matrix Per Sqm.
|
1,137,778
|
640,000
|
409,600
|
284,444
|
|
Pixel Configuration
|
COB 1R 1G 1B
|
|||
|
Brightness (nits)
|
600-800
|
|||
|
Scan
|
1/60
|
1/45
|
1/48
|
1/30
|
|
Module Dimension
|
150x168.75mm
|
|||
|
Cabinet Dimension
|
600x337.5mm
|
|||
|
Cabinet Material
|
Die Casting Aluminum
|
|||
|
Cabinet Weight
|
5.14KG
|
|||
|
Power Con. (W/Sqm.)
|
Max.300W/Avg.100W
|
|||
|
Service Access
|
Full Front Access
|
|||
|
Refresh Rate (HZ)
|
≥3840
|
|||
|
Grey Scale(bit)
|
16bit
|
|||
|
Contrast Ratio
|
10000:1
|
|||
|
Viewing Angle (H/V)
|
170°/170°
|
|||
|
IP Rate
|
P65 (front)
|
|||
|
Operation Temperature
|
-20℃~+60℃
|
|||
|
Operation Humidity
|
10%～90%
|
|||
|
Input Voltage (AC)
|
AC110/220V,50-60Hz
|
|||
Waterproof, dustproof, and impact resistant
Conventional SMD small pitch displays, due to their small spacing, cannot be glued or have a face mask installed on the display unit, exposing the LED on the outside. This results in the display screen being waterproof, dustproof, and anti-collision, making it a dust-free barrier. Even during transportation, the LED beads may be knocked off.
COB integrated packaging technology has completely overcome the difficulties that SMD cannot overcome with small spacing, truly achieving waterproof, dustproof, and anti-collision.
